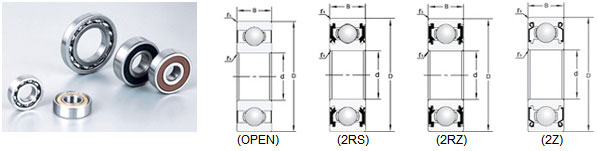

| 轴承型号 | 外形尺寸(mm) | 额定载荷(kN) | 极限转速(rmp) | 重量 (kg) | |||||
| d | D | B | r smin | Cr | Cor | Grease | Oil | Mass | |
| 6000 | 10 | 26 | 8 | 0.3 | 4.55 | 1.97 | 29000 | 34000 | 0.019 |
| 6001 | 12 | 28 | 8 | 0.3 | 5.10 | 2.37 | 26000 | 30000 | 0.021 |
| 6002 | 15 | 32 | 9 | 0.3 | 5.60 | 2.83 | 22000 | 26000 | 0.030 |
| 6003 | 17 | 35 | 10 | 0.3 | 6.00 | 3.25 | 20000 | 24000 | 0.039 |
| 6004 | 20 | 42 | 12 | 0.6 | 9.40 | 5.00 | 18000 | 21000 | 0.069 |
| 6005 | 25 | 47 | 12 | 0.6 | 10.1 | 5.85 | 15000 | 18000 | 0.080 |
| 6006 | 30 | 55 | 13 | 1 | 13.2 | 8.30 | 13000 | 15000 | 0.116 |
| 6007 | 35 | 62 | 14 | 1 | 16.0 | 10.3 | 12000 | 14000 | 0.155 |
| 6008 | 40 | 68 | 15 | 1 | 16.8 | 11.5 | 10000 | 12000 | 0.190 |
| 6009 | 45 | 75 | 16 | 1 | 21.0 | 15.1 | 9200 | 11000 | 0.237 |
| 6010 | 50 | 80 | 16 | 1 | 21.8 | 16.6 | 8400 | 9800 | 0.261 |
| 6011 | 55 | 90 | 18 | 1.1 | 28.3 | 21.2 | 7700 | 9000 | 0.388 |
| 6012 | 60 | 95 | 18 | 1.1 | 29.5 | 23.2 | 7000 | 8300 | 0.414 |
 |
